V2 TREN MÉXICO-TOLUCA
MEXICO (MSS M70-S) 2017-ONGOING
V2 Tren México-Toluca
MEXICO (MSS M70-S) 2017-...
Location
Lerma, Mexico
Lerma, Mexico
Year
2017-...
2017-...
Project

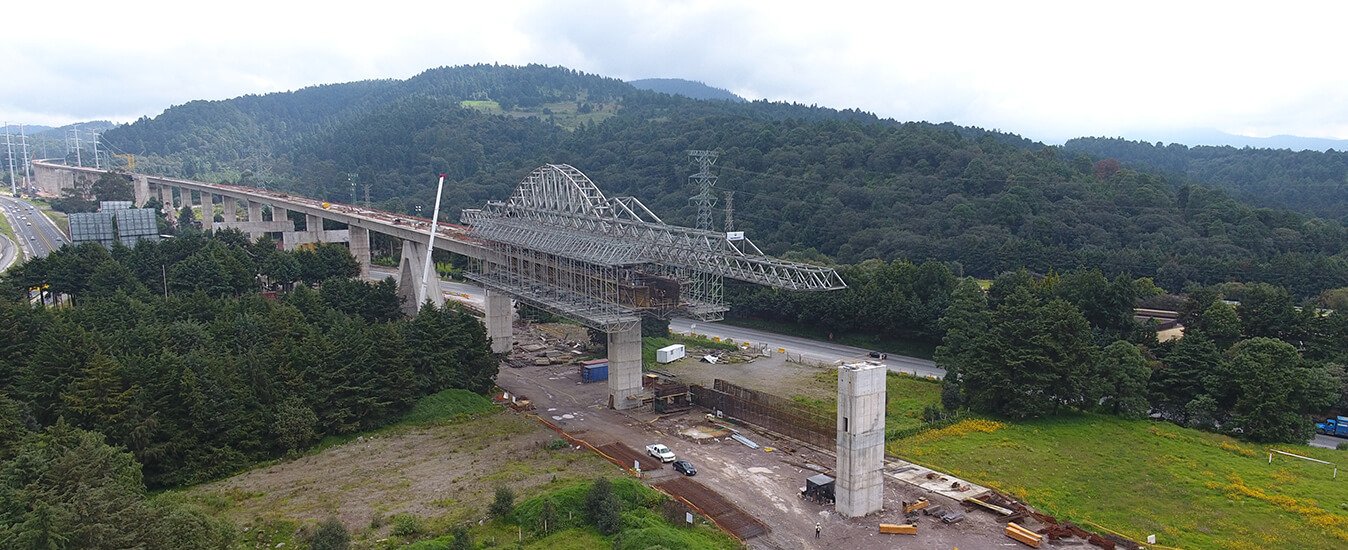

Type: Viaduct, length 1352 m (4436 ft.)
Typical Span: 55 m (180 ft)
Deck width: 11,5 m (38 ft.)
Typical Cross Section: Box
Type: Viaduct, length 1352 m (4436 ft.)
Typical Span: 55 m (180 ft)
Deck width: 11,5 m (38 ft.)
Typical Cross Section: Box
Equipment features
Model: MSS M70-S
Construction Type: In situ (In Place)
Type: Overhead MSS
OPS System: Integrated (not applied in the 55 m configuration)
Performance: 14-day cycles
Model: MSS M70-S
Construction Type: In situ (In Place)
Type: Overhead MSS
OPS System: Integrated (not applied in the 55 m configuration)
Performance: 14-day cycles
Challenges
• Assembly at pillars height, in the middle of the viaduct
• Fast execution capability
• Area renowned for its seismic activity
• The client needed a solution that exempted the use of temporary structures
• Assembly at pillars height, in the middle of the viaduct
• Fast execution capability
• Area renowned for its seismic activity
• The client needed a solution that exempted the use of temporary structures
Solutions

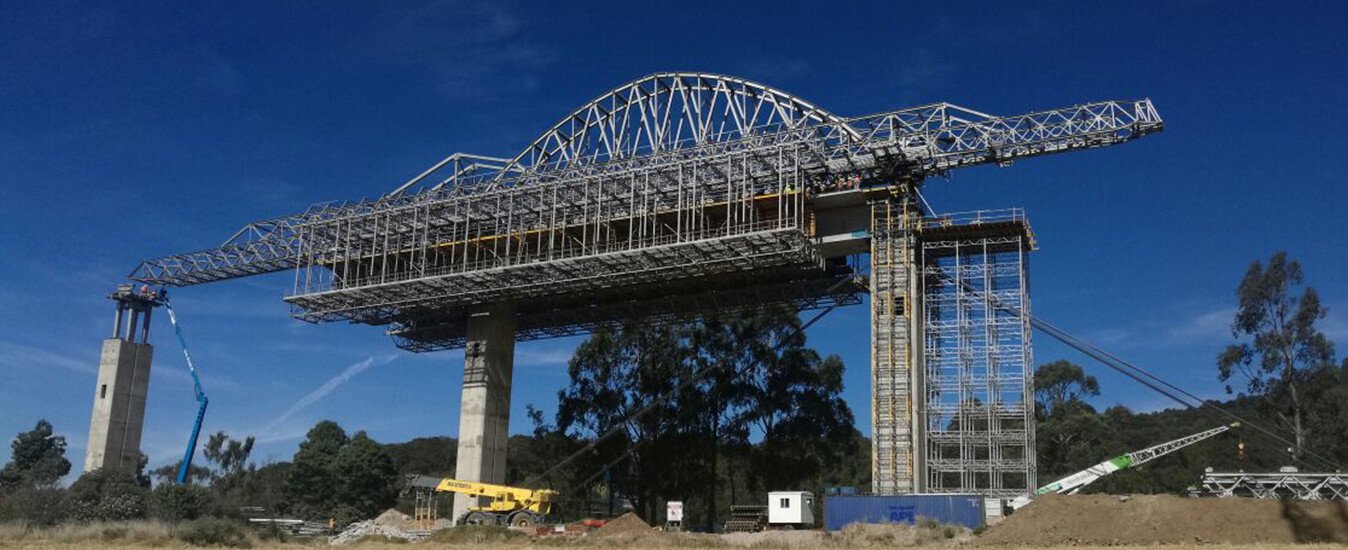

• MSS pre-assembly on the ground, in sections. Sections lifted with 1200 ton. cranes and final equipment assembly on top of the pillars.
• Formwork horizontal opening
• MSS pre-assembly on the ground, in sections. Sections lifted with 1200 ton. cranes and final equipment assembly on top of the pillars.
• Formwork horizontal opening
Results
• WORK IN PROGRESS
• WORK IN PROGRESS
